3 Input files

List of input files:

File	Category	Comments	Header	# of column
.mesh	sp	Domain cell (triangular mesh)	Yes
.att	sp	Attribute table of triangular cells	Yes
.riv	sp	Rivers	Yes
.rivseg	sp	Topologic relation b/w River and cell	Yes
.calib	cfg	Calibration on physical parameters	Yes
.para	cfg	Parameters of the model configurature	Yes
.ic	cfg	Intial conditions	Yes
.geol	para	Physical parameters for Geology layers	Yes
.soil	para	Physical parameters for Soil layers	Yes
.lc	para	Physical parameters for Land cover layers	Yes
.forc	tsd	List of files to the Time-series forcing data	Yes
.csv	tsd	Time-series forcing data	Yes
.lai	tsd	Time-series LAI data	Yes
.obs	tsd	Time-series observational data for calibration purpose only	Yes
.mf	tsd	Time-series Melt Factor data	Yes
.rl	tsd	Time-series Roughness Length data	Yes
gis/domain	Shapefile	Shapefile of .mesh file	x	x
gis/river	Shapefile	Shapefile of .riv file	x	x
gis/seg	Shapefile	Shapefile of .rivchn file	x	x

The screenshot of input files for SHUD

The files in folder gis and fig are not involved in SHUD modeling, but they are very useful for your data pre- and post-processing.

3.1 Spatial data

3.1.1 .sp.mesh file

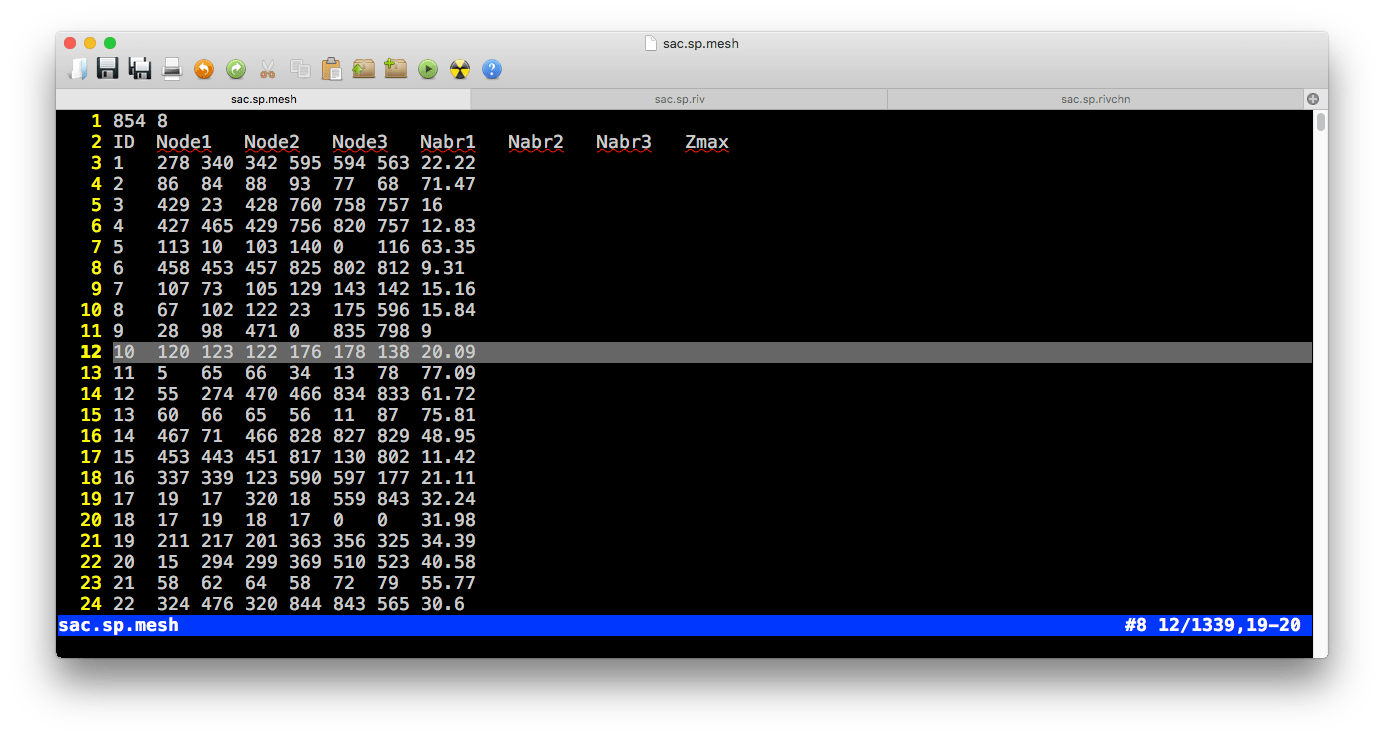

Example of .sp.mesh file (block 1) There are two tables in the .mesh file, the one is a table of cells and the other is a table of nodes of cells.

Block 1 (cell information)
Pre-table

Value1	Value2
Number of rows ( $N_{c e l l}$ )	Number of columns ( $8$ )

Table

Colname	Meaning	Range	Unit
ID	Index of cell $i$	1 ~ $N_{c e l l}$	-
Node1	Node 1 of cell $i$	1 ~ $N_{n o d e}$	-
Node2	Node 2 of cell $i$	1 ~ $N_{n o d e}$	-
Node3	Node 3 of cell $i$	1 ~ $N_{n o d e}$	-
Nabr1	Index of Neighbor 1 of cell $i$	1 ~ $N_{c e l l}$	-
Nabr2	Index of Neighbor 2 of cell $i$	1 ~ $N_{c e l l}$	-
Nabr3	Index of Neighbor 3 of cell $i$	1 ~ $N_{c e l l}$	-
Zmax	Surface elevation of cell $i$	-9999 ~ +inf	$m$

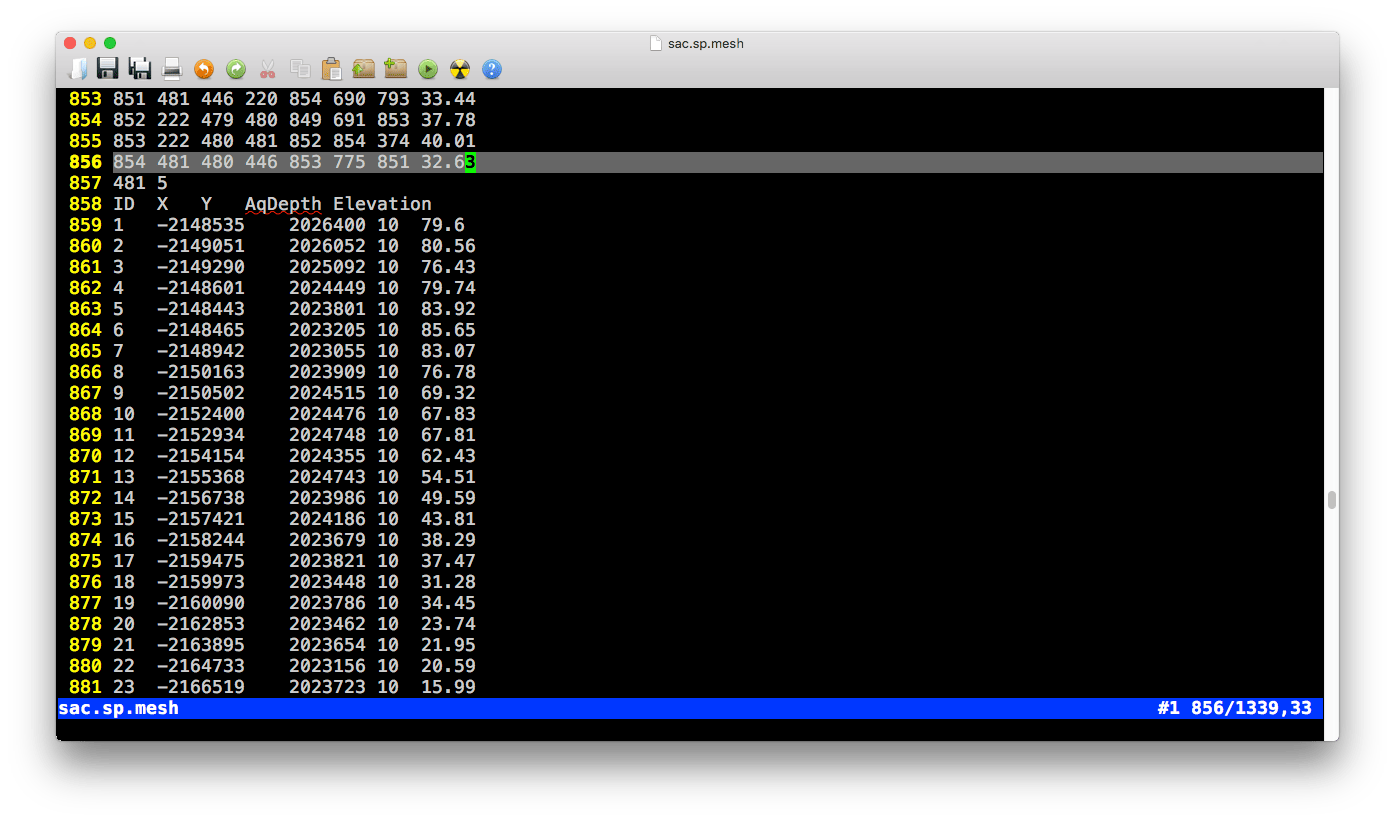

Block 2 (node information)
Pre-table:

Value1	Value2
Number of rows ( $N_{n o d e}$ )	Number of columns ( $5$ )

Table

Colname	Meaning	Range	Unit
ID	Index of node $i$	1 ~ $N_{c e l l}$	-
X	X coordinate of node $i$	1 ~ $N_{n o d e}$	-
Y	Y coordinate of node $i$	1 ~ $N_{n o d e}$	-
AqDepth	Thickness of aquifer $i$	0 ~ +inf	$m$
Elevation	Surface elevation of node $i$	-9999 ~ +inf	$m$

3.1.2 .sp.att file

Example of .sp.att file

Pre-table

Value1	Value2
Number of rows ( $N_{c e l l}$ )	Number of columns ( $7$ )

Table

Colname	Meaning	Range	Unit	Comments
ID	Index of cell $i$	1 ~ $N_{c e l l}$	-
SOIL	Index of soil type	1 ~ $N_{s o i l}$	-
GEOL	Index of geology type	1 ~ $N_{g e o l}$	-
LC	Index of land cover type	1 ~ $N_{l c}$	-	$N_{l c}$ = $N_{l a i}$
FORC	Index of forcing site	1 ~ $N_{f o r c}$	-
MF	Index of melt factor	1 ~ $N_{m f}$	-
BC	Index of boundary condition	1 ~ $N_{b c}$	-
SS	Index of Source/Sink condition	1 ~ $N_{b c}$	-

3.1.3 .sp.riv file

Example of .sp.riv file

Pre-table

Value1	Value2
Number of rows ( $N_{r i v}$ )	Number of columns ( $5$ )

Table

Colname	Meaning	Range	Unit	Comments
ID	Index of river $i$	1 ~ $N_{r i v e r}$	-
DOWN	Index of downstream river	1 ~ $N_{r i v e r}$	-	Negative vlaue indicates outlet
Type	Index of river parameters	1 ~ $N_{r i v e r t y p e}$	-
Slope	Slope of river bed	-10 ~ 10	$m / m$	Height/Length
Length	Length of the river $i$	0 ~ inf	$m$

3.1.4 .sp.rivseg file

Example of .sp.rivseg file

Pre-table

Value1	Value2
Number of rows ( $N_{s e g m e n t}$ )	Number of columns ( $4$ )

Table

Colname	Meaning	Range	Unit
ID	Index of segments $i$	1 ~ $N_{s e g m e n t}$	-
iRiv	Index of river	1 ~ $N_{r i v e r}$	-
iEle	Index of cell	1 ~ $N_{c e l l}$	-
Length	Length of the segments $i$	0 ~ inf	$m$

3.2 Model configuration files

3.2.1 .cfg.para file

Example of .cfg.para file

Table

Colname	Meaning	Range	Unit	Default value
VERBOSE	Verbose mode	-	-	0
INIT_MODE	Initial condition mode	0~3	-	3 (0=Relief conditon, 1=Dry condition, 2=Default guess, 3=Warm start)
ASCII_OUTPUT	ASCII ouput	1/0	-	0
Binary_OUTPUT	Binary output	1/0	-	1
SPINUPDAY	Days for spinup	0 ~ inf	$d a y$	0
SCR_INTV	Number of threads for OpenMP	0 ~ $N_{t h r e a d s}$	$m i n$	1440
ABSTOL	Abosolute tolerance for CVODE solver	1e-6 ~ 0.1	-	0.0001
RELTOL	Relative tolerance for CVODE solver	1e-6 ~ 0.1	-	0.0001
INIT_SOLVER_STEP	Initial time step for CVODE solver	-	$m i n$	1
MAX_SOLVER_STEP	Maximum time step for CVODE solver	1~60	$m i n$	10
ET_STEP	Time step of Evapotranspiration	1~360	$m i n$	60
START	Start Time	0 ~ inf	$d a y$	0
END	End Time	-	$d a y$	-
dt_ye_snow	Time step of output snow storage	0 ~ inf	$m i n$	1440
dt_ye_surf	Time step of output surface storage	0 ~ inf	$m i n$	1440
dt_ye_unsat	Time step of output unsaturated storage	0 ~ inf	$m i n$	1440
dt_Qe_surf	Time step of output surface cell flux	0 ~ inf	$m i n$	1440
dt_Qe_sub	Time step of output subsurface cell flux	0 ~ inf	$m i n$	1440
dt_qe_et0	Time step of output cell flux, interception	0 ~ inf	$m i n$	1440
dt_qe_et1	Time step of output cell flux, transpiration	0 ~ inf	$m i n$	1440
dt_qe_et2	Time step of output cell flux, evaporation	0 ~ inf	$m i n$	1440
dt_qe_etp	Time step of output cell flux, potential ET	0 ~ inf	$m i n$	1440
dt_qe_prcp	Time step of output cell flux, interception	0 ~ inf	$m i n$	1440
dt_qe_infil	Time step of output cell flux, interception	0 ~ inf	$m i n$	1440
dt_qe_rech	Time step of output cell flux, interception	0 ~ inf	$m i n$	1440
dt_yr_stage	Time step of output river stage	0 ~ inf	$m i n$	1440
dt_Qr_down	Time step of output river flux, downstream	0 ~ inf	$m i n$	1440
dt_Qr_surf	Time step of output river flux, surface flow	0 ~ inf	$m i n$	1440
dt_Qr_sub	Time step of output river flux, base flow	0 ~ inf	$m i n$	1440
dt_Qr_up	Time step of output river flux, upstream	0 ~ inf	$m i n$	1440

3.2.2 .cfg.calib file

Example of .cfg.calib file

Table

Colname	Meaning	Range	Unit
GEOL_KSATH	Horizontal conductivity of ground water	?	-
GEOL_KSATV	Vertical conductivity of ground water	?	-
GEOL_KMACSATH	Horizontal conductivity of macropore	?	-
GEOL_DMAC	Macropore depth		-
GEOL_THETAS	Porosity, saturated soil moisture		-
GEOL_THETAR	Residual soil moisture		-
GEOL_MACVF	Vertical macropore areal fraction		-
SOIL_KINF	Vertical conductivity of top soil	?	-
SOIL_KMACSATV	Vertical conductivity of soil macropore	?	-
SOIL_DINF	Infiltration depth	?	-
SOIL_DROOT	Root depth		-
SOIL_ALPHA	$α$ value in van Genuchten equation		-
SOIL_BETA	$β$ value in van Genuchten equation		-
SOIL_MACHF	Horizontal macropore areal fraction		-
LC_VEGFRAC	Vegetation fraction		-
LC_ALBEDO	Emissitive reflection ratio		-
LC_ROUGH	Manning’s roughness of cell surface		-
LC_SOILDGD	Soil degradation		-
LC_IMPAF	Impervious areal fraction		-
LC_ISMAX	Maximum interception		-
AQ_DEPTH+	Thichness of aquifer		$m$
TS_PRCP	Precipitation		-
TS_SFCTMP+	Temperature		$C$
ET_ETP	Transpiration		-
ET_IC	Interception		-
ET_TR	Evaporation		-
ET_SOIL	Evaporation		-
RIV_ROUGH	Manning’s roughness of river		-
RIV_KH	Conductivity of river bed		-
RIV_DPTH+	Depth of river cross section		$m$
RIV_WDTH+	Width of river cross section		$m$
RIV_SINU	Sinuosity of river path		-
RIV_CWR	$C_{w r}$ in Chezy equation		-
RIV_BSLOPE+	Slope of river bed		$m / m$
IC_GW+	Initial condition of groundwater		$m$
IC_RIV+	Initial condition of river stage		$m$

3.2.3 .cfg.ic file

Example of .cfg.ic file

Block 1 (cell initial condition)
Pre-table

Value1	Value2
Number of rows ( $N_{c e l l}$ )	Number of columns ( $6$ )

Table

Colname	Meaning	Range	Unit
ID	Index of cell $i$	1 ~ $N_{c e l l}$	-
Canopy	Canopy storage of cell $i$	0 ~ inf	$m$
Snow	Snow storage of cell $i$	0 ~ inf	$m$
Surface	Surface storage of cell $i$	0 ~ inf	$m$
Unsat	Unsaturated storage of cell $i$	0 ~ inf	$m$
GW	Groundwater head of cell $i$	0 ~ inf	$m$

Block 2 (river initial condition)
Pre-table:

Value1	Value2
Number of rows ( $N_{r i v}$ )	Number of columns ( $2$ )

Table

Colname	Meaning	Range	Unit	Comments
ID	Index of river $i$	1 ~ $N_{r i v}$	-
Stage	Stage of river $i$	0 ~ inf	$m$

3.3 Time-series data

3.3.1 .tsd.forc file

Example of .tsd.forc file

Line 1: Number of forcing sites | Start day (YYYYMMDD)
Line 2: Directory to the spreadsheet
Line 3~N: Filenames of spreadsheet

Example of .csv forcing file

Pre-table:

Value1	Value2
( $0$ )	Number of columns ( $6$ )

Table

Colname	Meaning	Range	Unit
Day	Time	0 ~ $N_{d a y}$	$d a y$
PRCP	Precipitation	0 ~ 1	$m / d a y$
TEMP	Temperature	-100 ~ 70	$C$
RH	Relative Humidity	0 ~ 1	$-$
wind	Wind Speed	0 ~ inf	$m / d a y$
Rn	Solar (shortwave) radiation	?	$J / d a y / m^{2}$

3.3.2 .tsd.lai file

Example of .tsd.lai file

Pre-table:

Value1	Value2	Value3
Number of day ( $N_{t i m e}$ )	Number of columns ( $N_{l c}$ )	Start day (YYYYMMDD)

Table

Colname	Meaning	Range	Unit
TIME	Time	0 ~ $N_{t i m e}$	$d a y$
Column 2	LAI of land cover 1	0 ~ inf	$m^{2} / m^{2}$
Column i	LAI of land cover $i - 1$	0 ~ inf	$m^{2} / m^{2}$
…	…	…	…

3.3.3 .tsd.rl file

Example of .tsd.rl file

Pre-table:

Value1	Value2	Value3
Number of day ( $N_{t i m e}$ )	Number of columns ( $N_{l c}$ )	Start day (YYYYMMDD)

Table

Colname	Meaning	Range	Unit
TIME	Time	0 ~ $N_{t i m e}$	$d a y$
Column 2	Roughness length of land cover 1	0 ~ inf	$m$
Column i	Roughness length of land cover $i - 1$	0 ~ inf	$m$
…	…	…	…

3.3.4 .tsd.mf file

Example of .tsd.mf file

Pre-table:

Value1	Value2	Value3
Number of day ( $N_{t i m e}$ )	Number of columns ( $N_{m f}$ )	Start day (YYYYMMDD)

Table

Colname	Meaning	Range	Unit
TIME	Time	0 ~ $N_{t i m e}$	$d a y$
Column 2	Melt factor 1	0 ~ inf	-
Column i	Melt factor $i - 1$	0 ~ inf	-
…	…	…	…

3.3.5 .tsd.obs file

Example of .tsd.obs file

Pre-table:

Value1	Value2	Value3
Number of day ( $N_{t i m e}$ )	Number of columns ( $N_{o b s}$ )	Start day (YYYYMMDD)

Table

Colname	Meaning	Range	Unit
TIME	Time	0 ~ $N_{t i m e}$	$d a y$
Column 2	Observational data 1	?	?
Column i	Observational data $i - 1$	?	?
…	…	…	…
